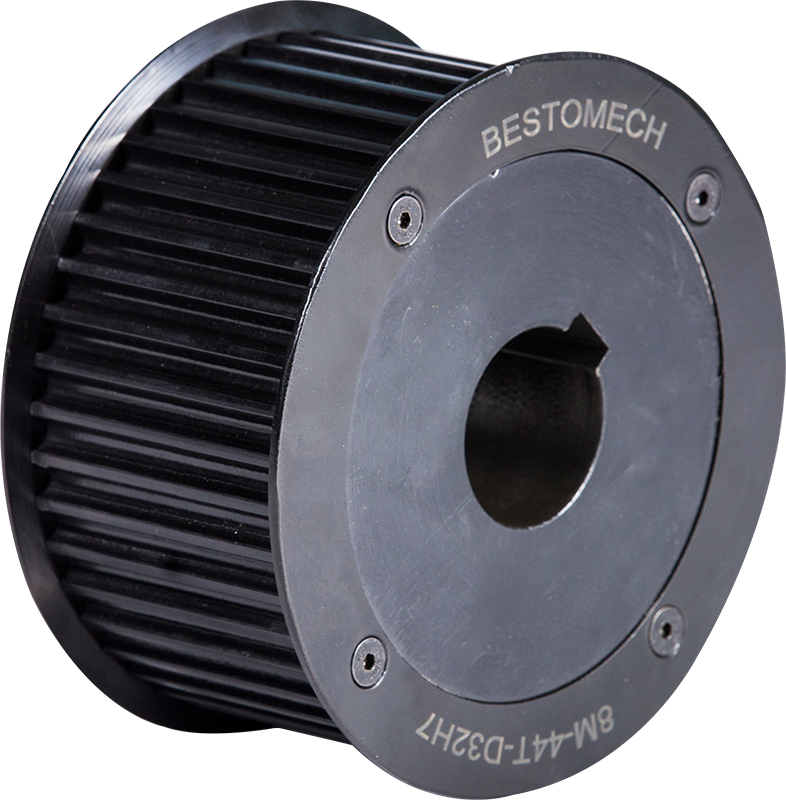

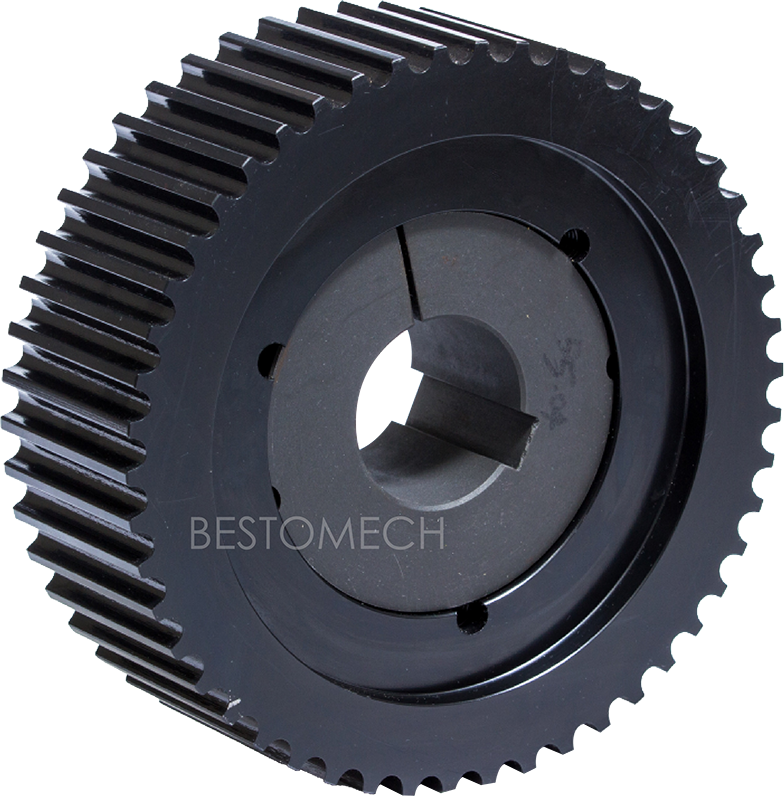

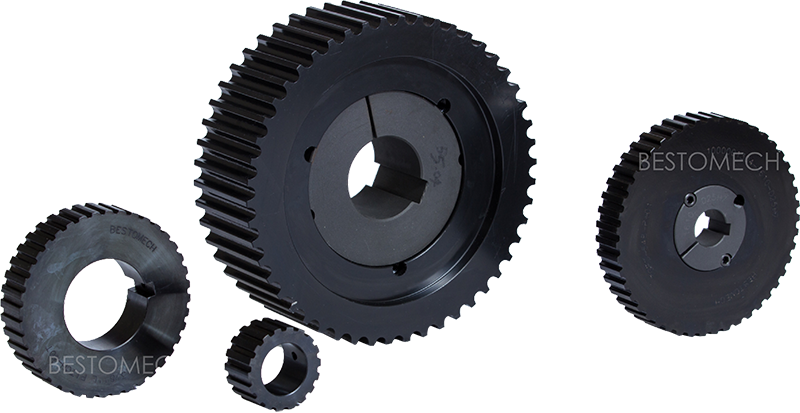

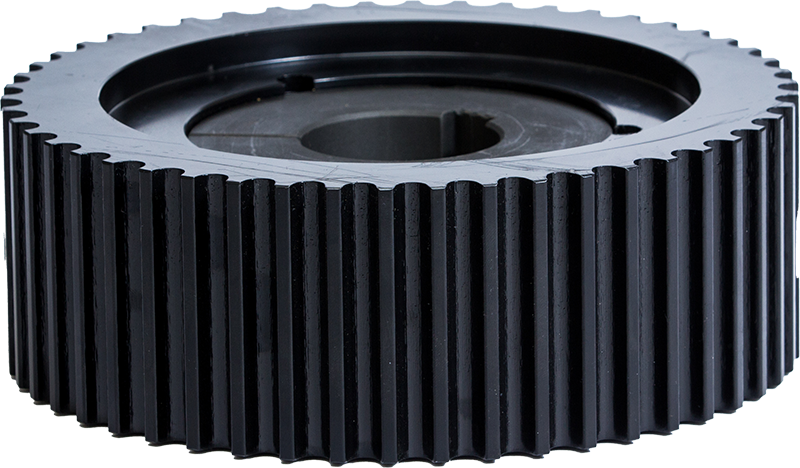

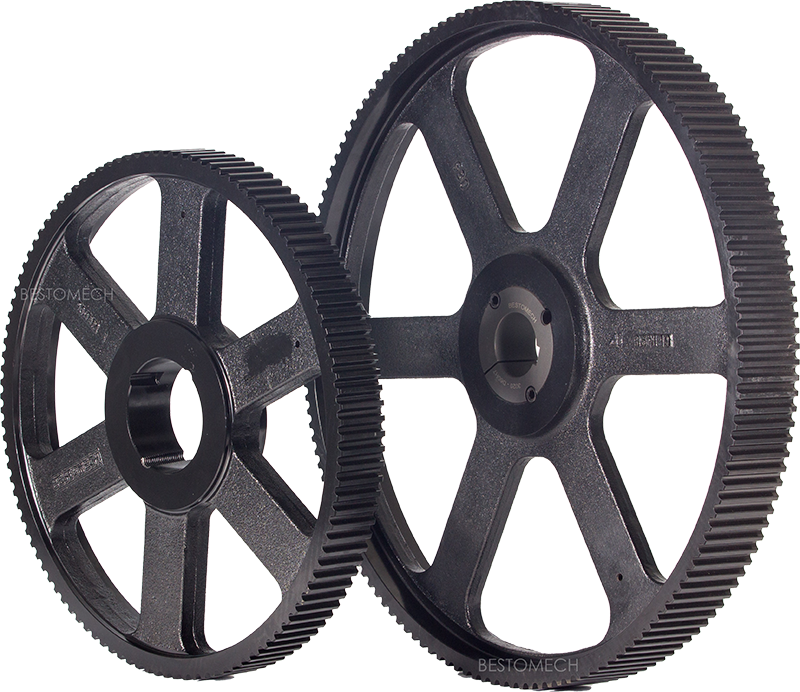

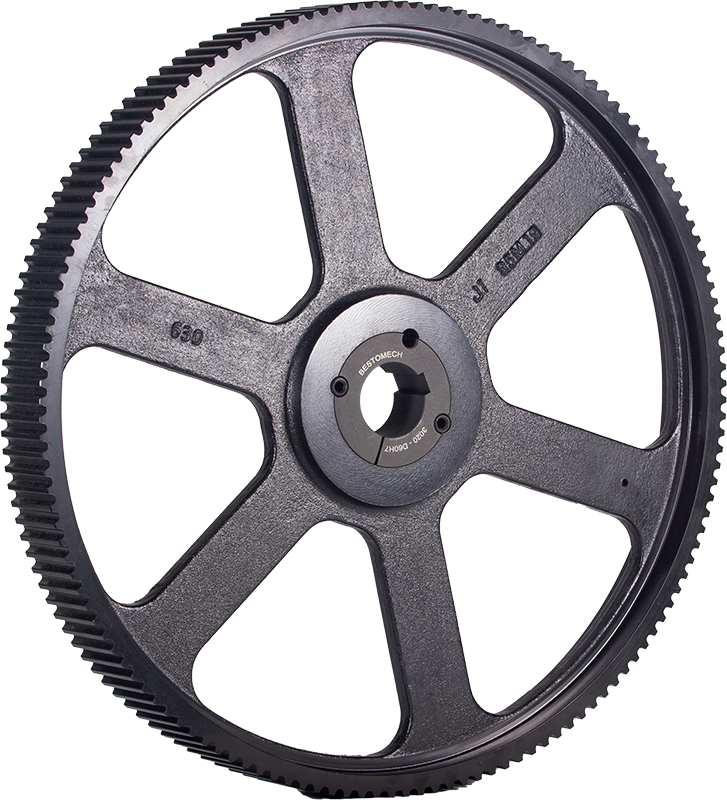

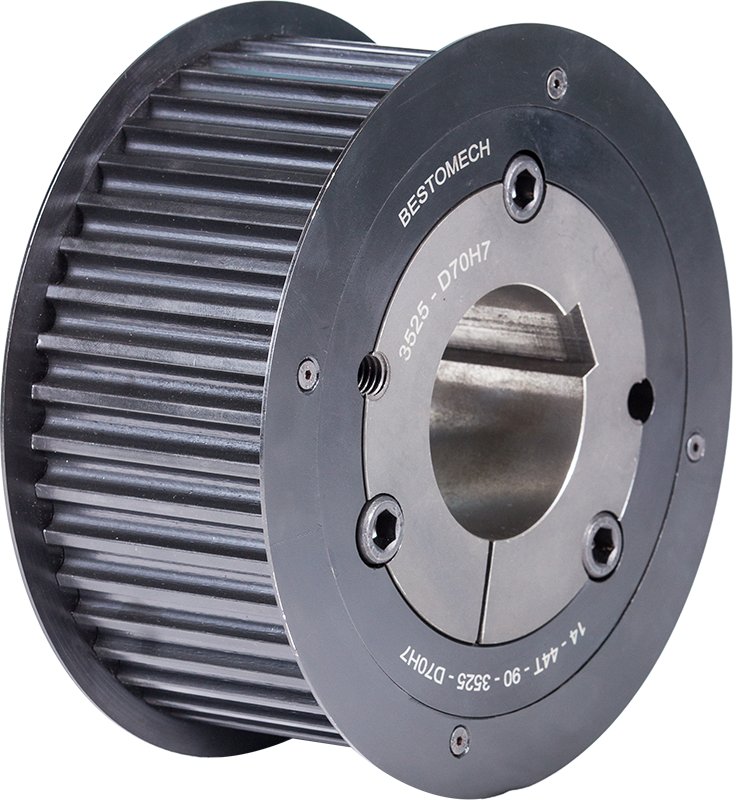

Timing Pulleys

Precise, Non-Slip Power Transmission – Ensures exact speed ratios with no creep or slip, maintaining accurate motion control.
High Efficiency – Delivers up to 98% efficiency with minimal power loss.
High Tensile Load Capacity – Can handle heavy loads without compromising performance.
Operates at Higher Speeds – Suitable for higher speeds compared to chain drives, improving productivity.
Reduced Belt Tension – Low tension requirements lead to longer bearing life and reduced maintenance.
Reduced Noise & Vibration – Provides smooth, quiet operation compared to traditional chain or gear drives.

Timing Pulley Pitches	3M, 5M, 8M, 14M
Size Range	50mm upto 1 m diameter
Weight Range	500g upto 500 Kg per piece
Balancing	Static / Dynamic Balancing – G2.5, G6.3 \| Allowable Unbalance – 3 grams minimum
Material Grade	FG200, FG260, GG20, GG25, GG30, FC25, FC30, C45/EN8
Surface Treatment	Phosphating, CED coating, Blackening, Painting
End User	Machine Tool, Textile Machinery, Food Processing Machinery, Air Compressors, Engine Pulleys, Conveyors.
