Diverter Pulleys / Deflector Sheaves

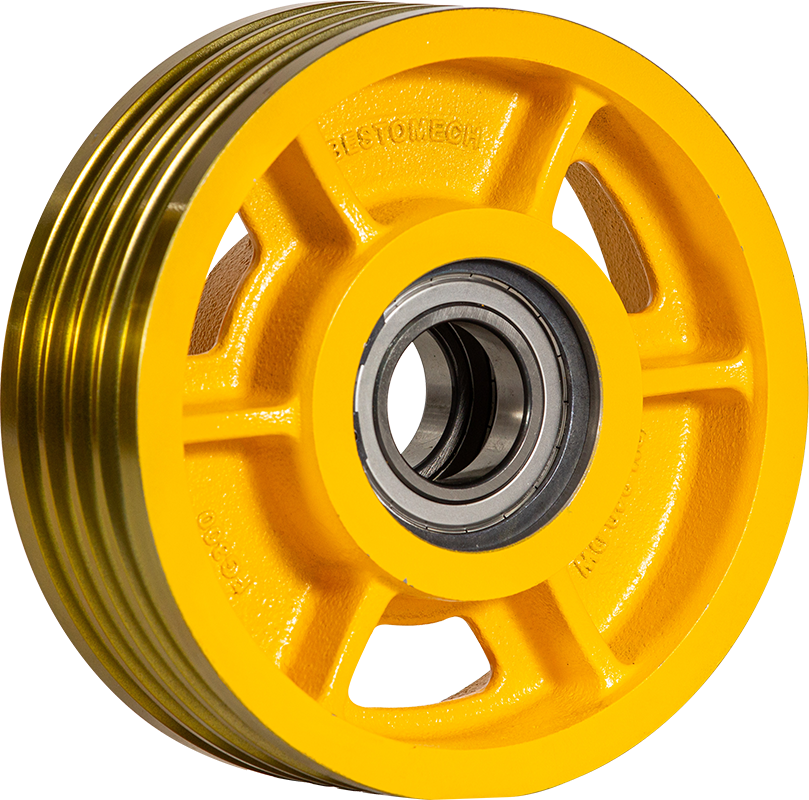

Home Lift Sheaves

Passenger Lift Sheaves

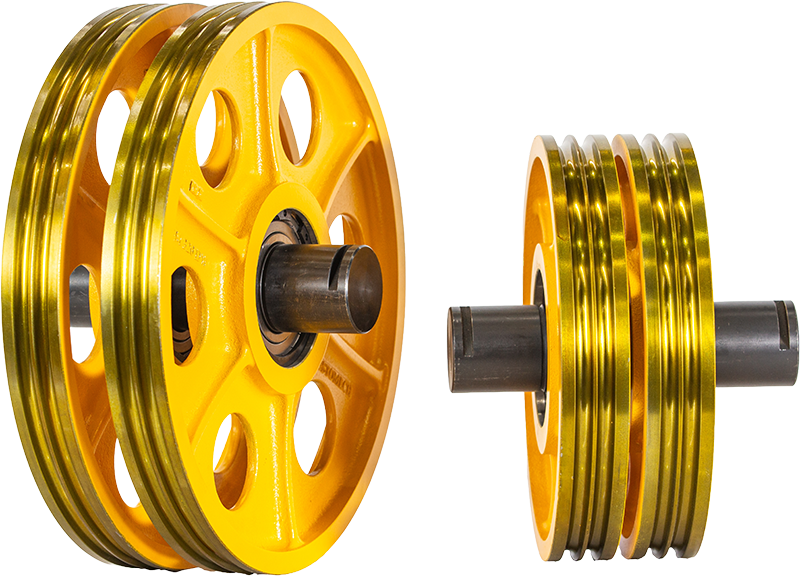

Hydraulic Lift Sheaves

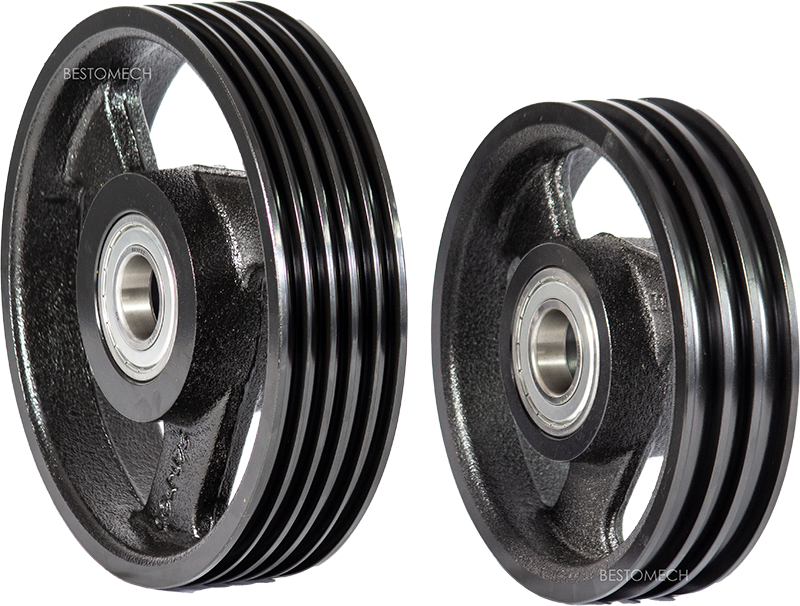

Vehicle Parking Lift Sheaves

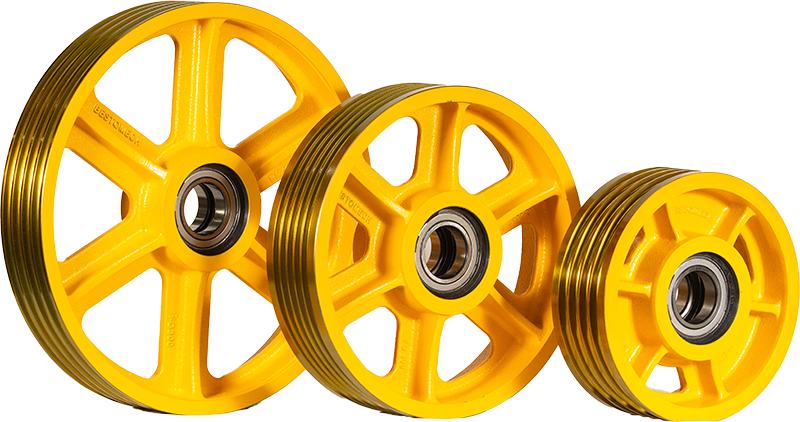

Diverter Wheels/ Deflector Sheaves are critical components used in elevator systems to redirect the path of the wire rope, ensuring smooth and efficient load movement. Designed for durability and precision, these wheels are engineered to withstand high loads and continuous operation.

Advantages of Elevator Diverter Wheels:

Durability: Long-lasting materials(SG Iron) for high wear resistance.
Smooth Operation: Reduces friction, noise, and vibration.
High Load Capacity: Designed to Handle heavy loads efficiently.
Corrosion Resistance: Suitable for harsh environments.
Customization: Tailored to specific needs.
Cost-Effective: Low maintenance, reducing long-term costs.
Precision Engineering: Reliable performance and easy integration.
Safety: Designed taking factor of safety , Enhances overall system safety and reliability.

These benefits ensure better performance, efficiency, and longevity in elevator systems.

Diameter	160mm upto 600 mm (bigger sizes - only for customized designs)
Rope Diameter	6mm, 6.5mm, 8mm, 10mm, 13mm, 16mm
Bearings	SKF, FAG, NSK, KG - with 2Z or 2RS shielding
Grooves	2 to 10
Width	36mm to 180mm
Load Capacity	1600 Kgs to 10800 Kgs
Material Grade	FG300, FG260, SG 500/7, SG 600/3
Surface Treatment	Yellow paint with Golden Yellow Rust prevent
End User	Elevator OEMs, Hydraulic lift manufactures, Vehicle Lift Manufactures
