Sprockets are heavy-duty, precision-engineered components used in chain drive systems to ensure reliable power transmission in demanding industrial environments.
Advantages of Sprockets:
- Extensive Product Range - Available in different types (roller chain, taper bush, bearing fit, hub), sizes, and materials.
- Customization - Sprockets can be customized to meet unique design specifications or specialized applications.
- Case-Hardened Sprockets - Case-hardened sprockets offer superior wear resistance, increased durability, and an extended lifespan. They reduce friction, prevent premature failure, enhance load-bearing capacity, and are ideal for heavy-duty applications in harsh environments.
- Easy Installation & Removal - Taper bush sprockets are quick to fit and remove without special tools, reducing downtime.

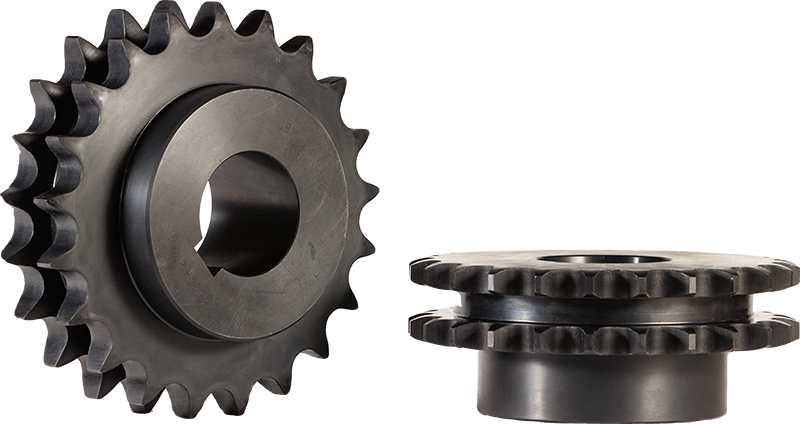

Simplex

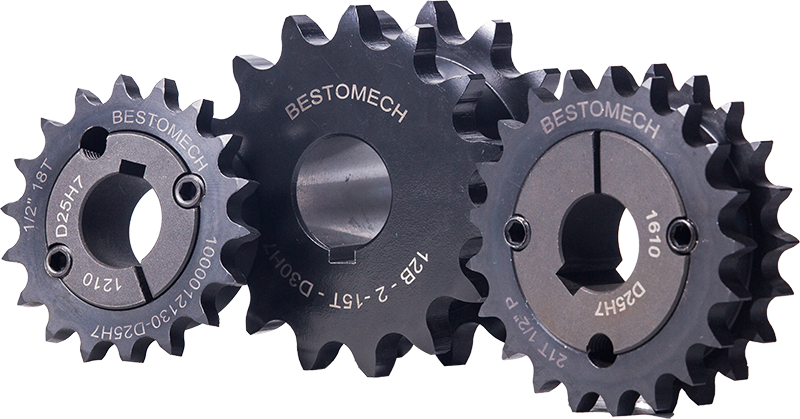

Duplex

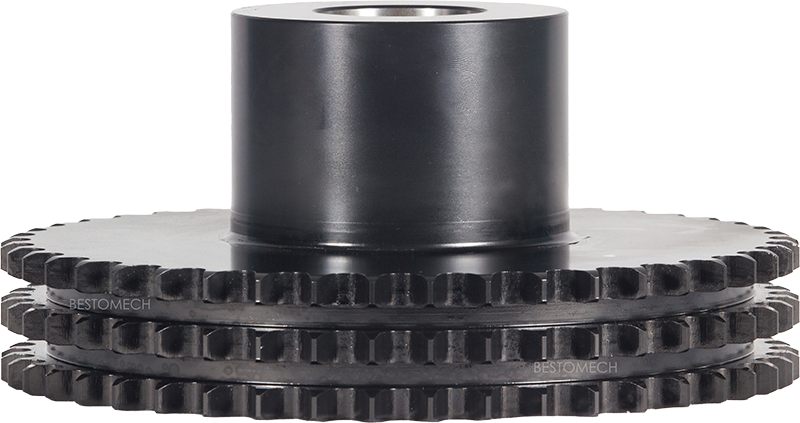

Triplex

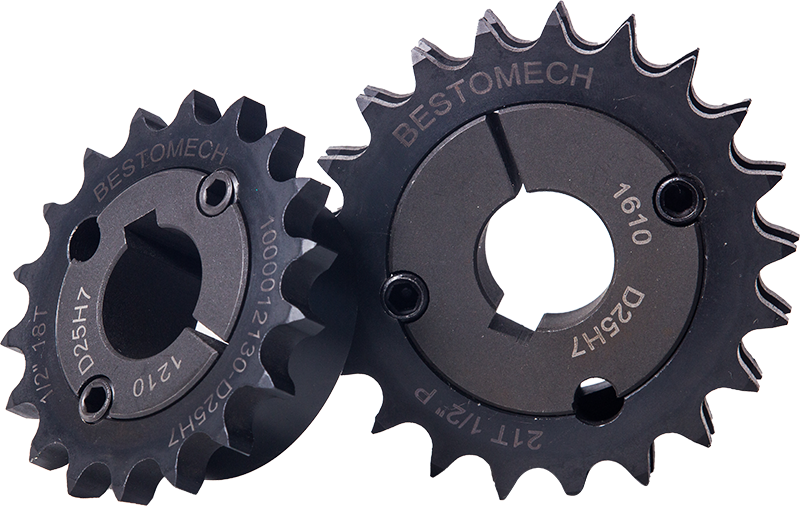

Taper Bush and Customised
| Pitch | British Standard - 06B, 08B, 10B, 12B & 16B, 20B, 24B American Standard - 35, 40, 50, 60, 80, 100, 120 (⅜” upto 2” pitch) and any non-standard profile |
| Sprocket Type | Simplex,Duplex, Triplex |
| Bore Type | Pilot Bore, Finished bore with Keyway, Bearing bore, Taper Lock, QD Bush |
| Weight Range | 500grams to 300 Kgs. |
| Size Range | Dia. 40mm to 800mm with dynamic balancing. |
| Surface Treatment | Phosphating & E-Coating,Blackening. |
| Material | En-8/C-45, Ductile Iron |
| Induction Hardening | Case Hardened upto 2-3 mm depth and 45-50 HRC. Higher hardness can be achieved based on different material. |
| End User | Industrial Gear Box, Dosing Pumps, Harvesting & Rice Mill Machineries, General Machineries. |
