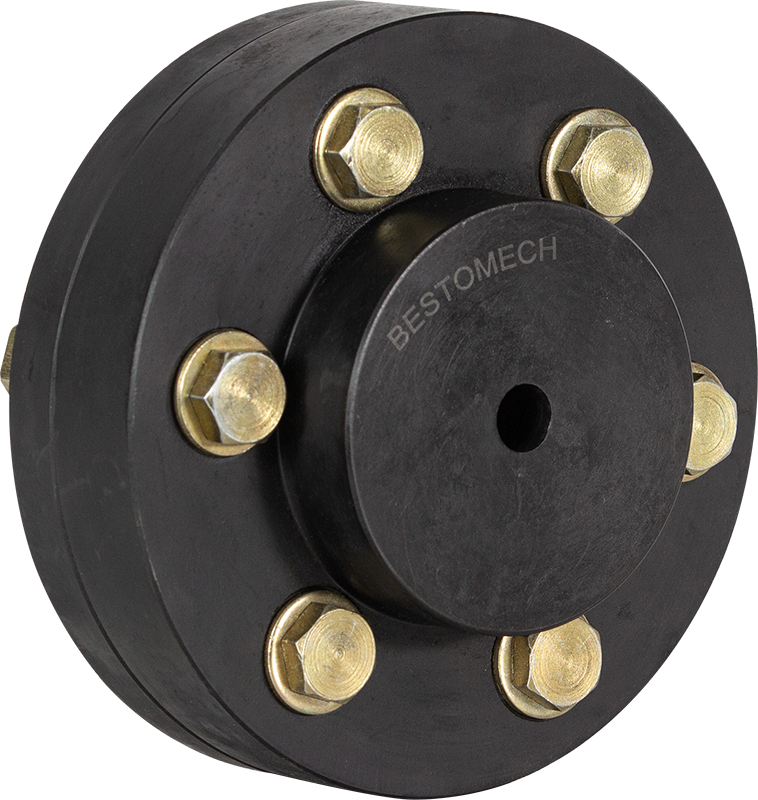

The Pin Bush Coupling (PBC) is designed for power transmission systems where slight misalignment exists between the driving and driven shafts.
It combines a well-engineered structure with the ability to transmit high torque at elevated speeds, while also effectively absorbing shock loads.

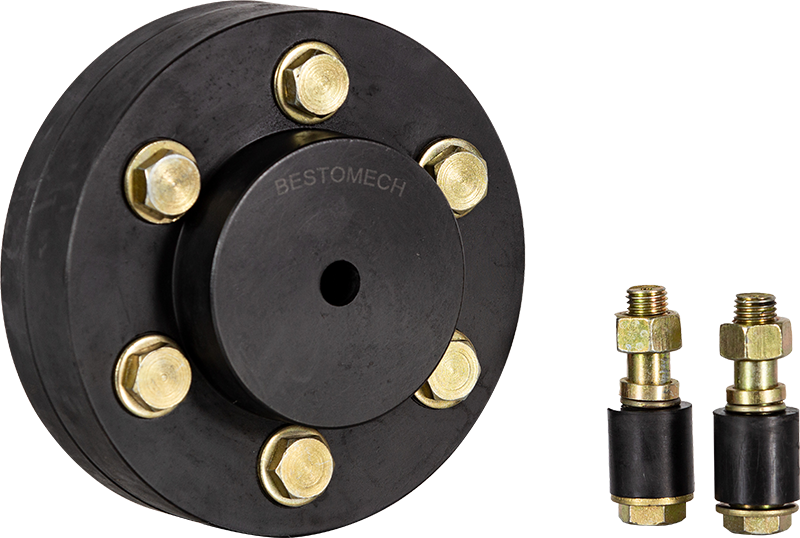

This unidirectional coupling is capable of transmitting torque in both clockwise and counterclockwise directions, using high-tensile steel bolts for power transfer.
Built for minimal maintenance and downtime, the PBC requires no re-adjustment after installation and operates without the need for lubrication. Its sturdy design ensures that the flexible bushes remain resistant to oil, grease, dust, and varying environmental conditions.
| Product Number | BMPC 1 - BMPC 17 |
| Torque | 185 Nm - 25,783 Nm (Light duty) 31,035 Nm - 1,97,600 Nm (Heavy duty) |
| Power Rating | Max 13,500 kW at 100 rpm |
| Product Diameter | 105 mm - 2000 mm |
| Bore Diameter | 32 mm - 250 mm |
| Bore Type | Pilot Bore, Finished bore with Keyway, Taper Bush |
| Material | FG 260 | Cast Steel |
| Surface Treatment | Phospating, CED Coating |
| End User | Steel Mills, Metal Processing, Cement factories, Mining Equipment, Metal Processing, Construction Equipment, Coal Industry |
