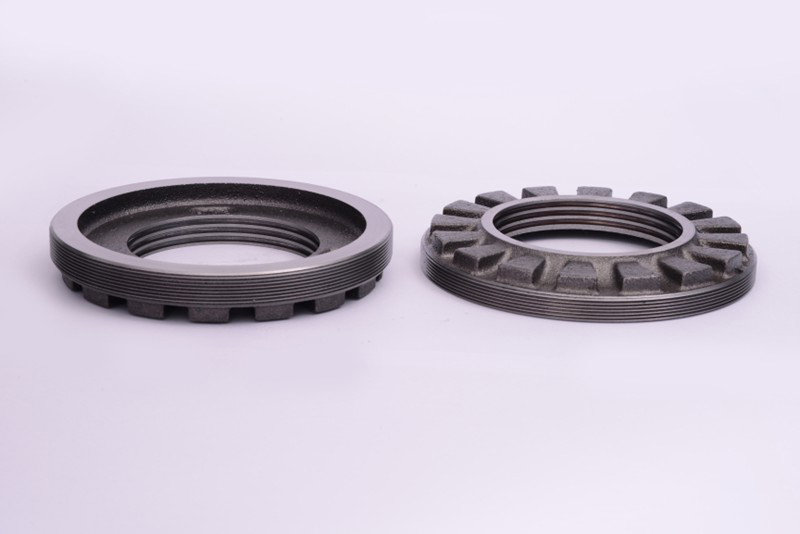

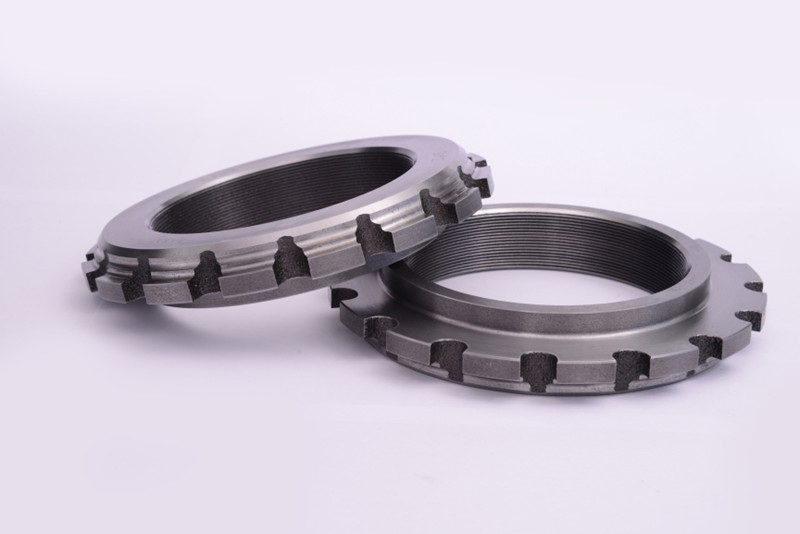

Adjusting Ring"

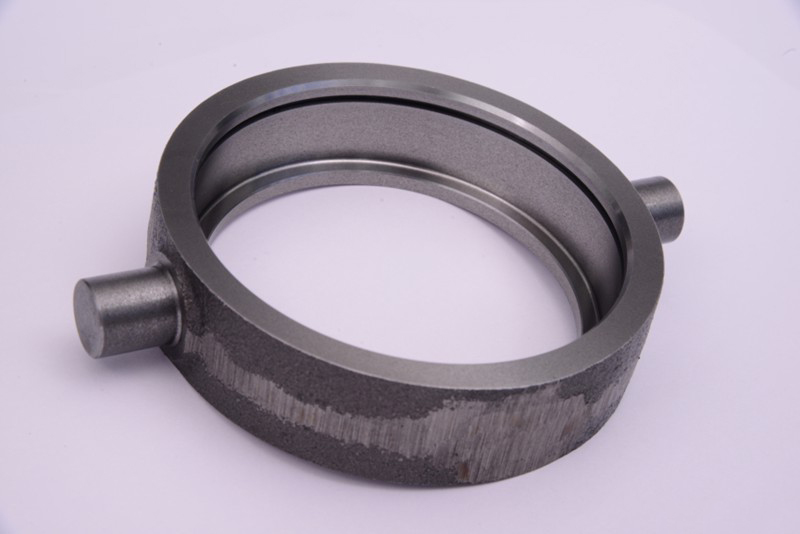

Bearing Coller

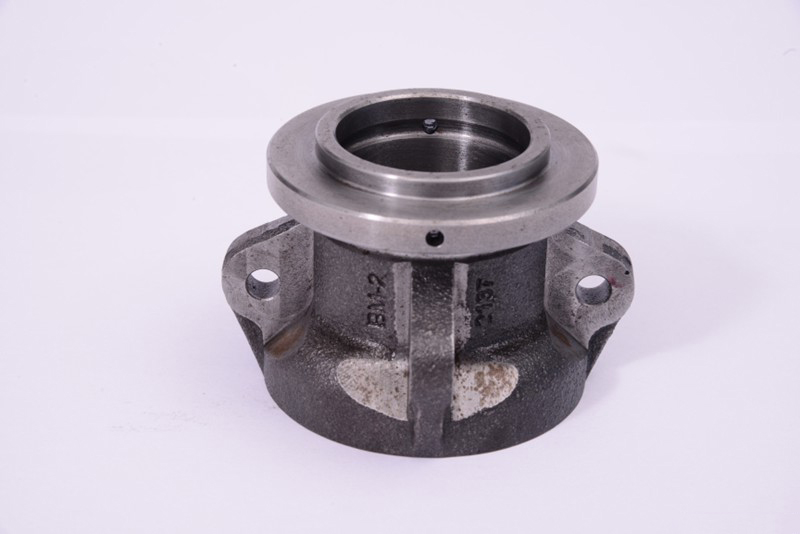

Bearing Retainer

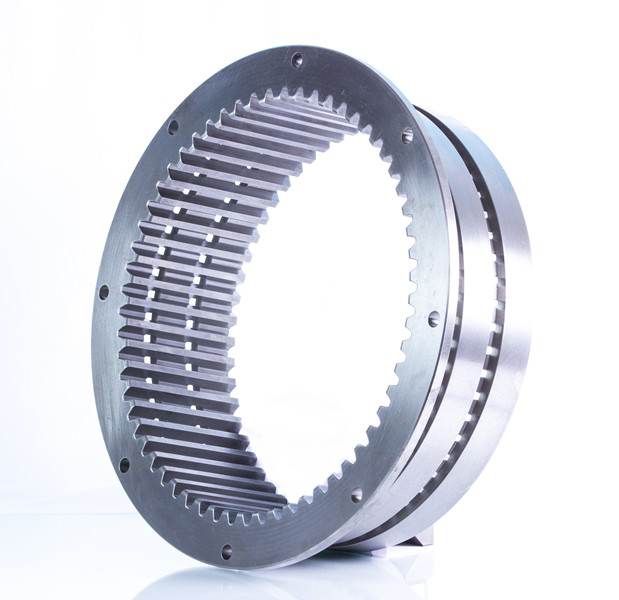

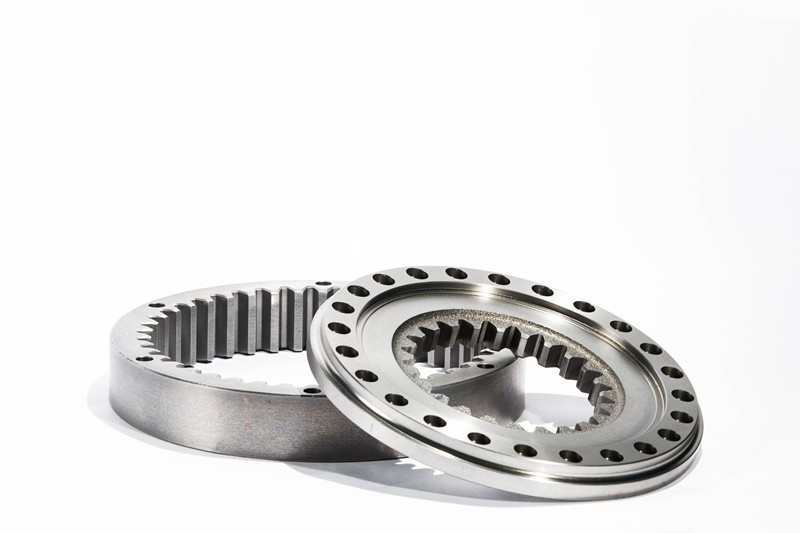

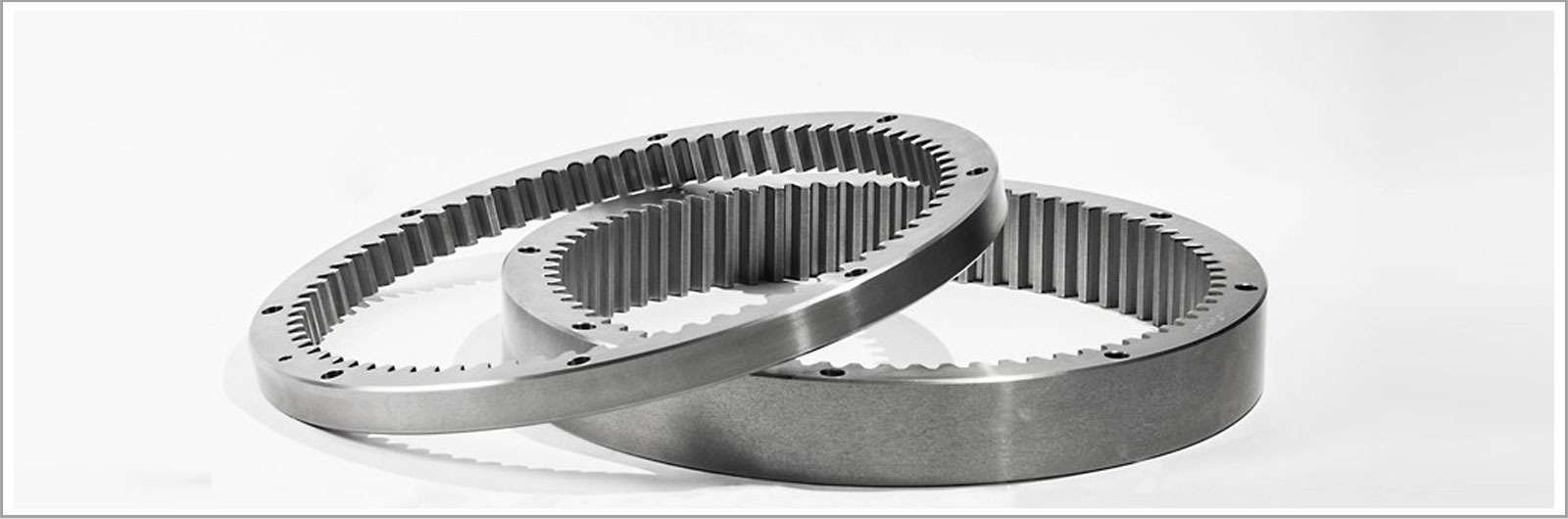

Drive Ring [Internal Gear]

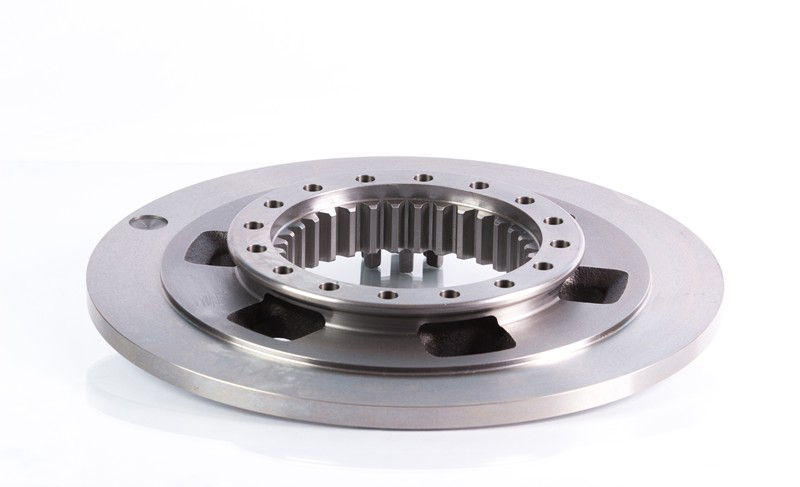

Floting Plate

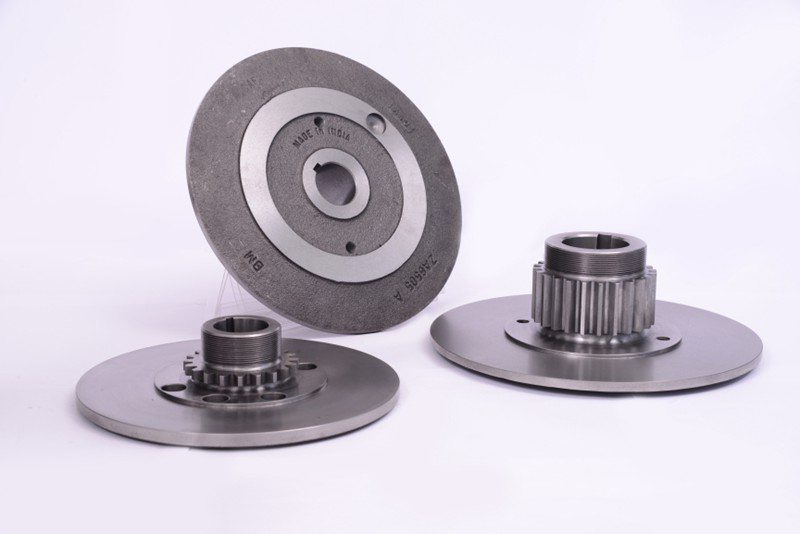

Hub & Back Plates

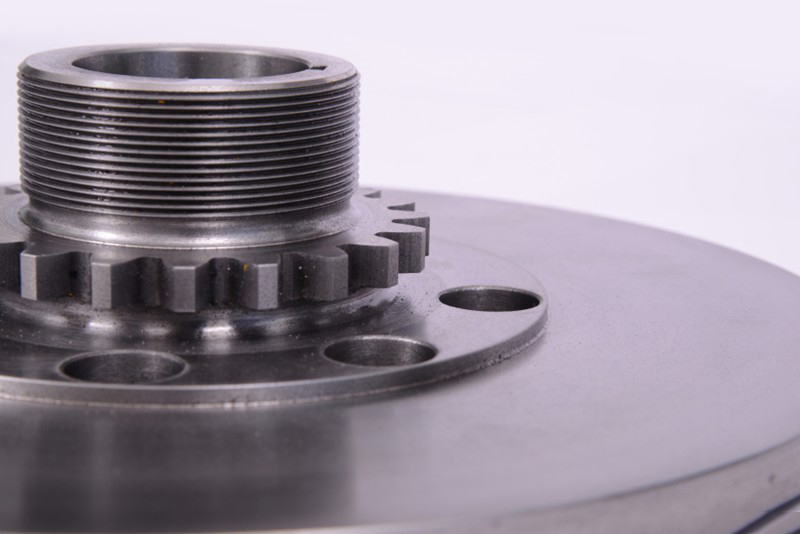

Hub & Back Plates

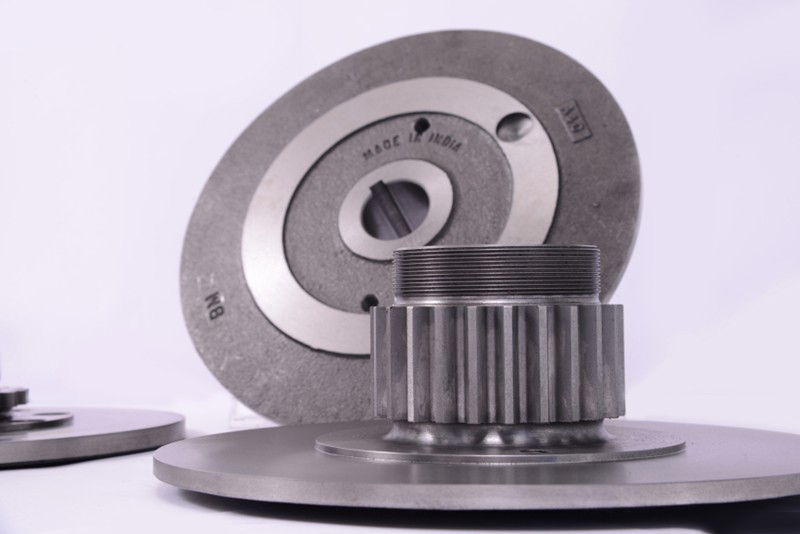

Hub & Back Plates

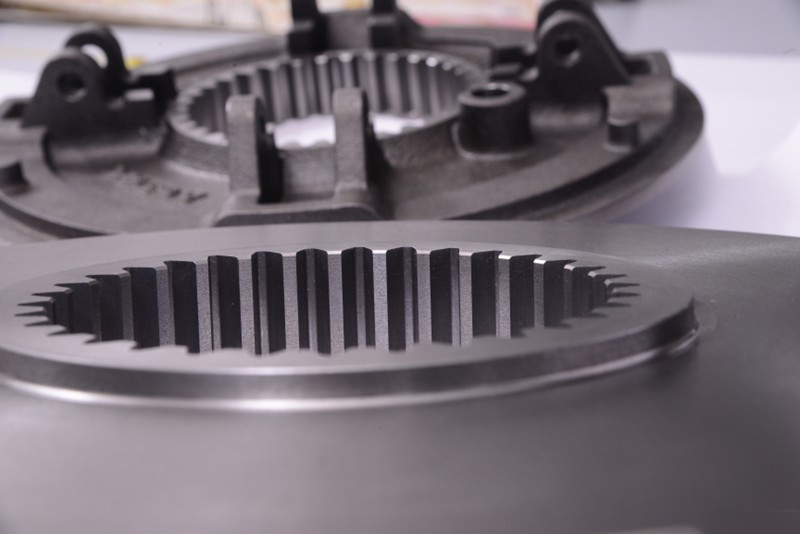

Pressure Plate

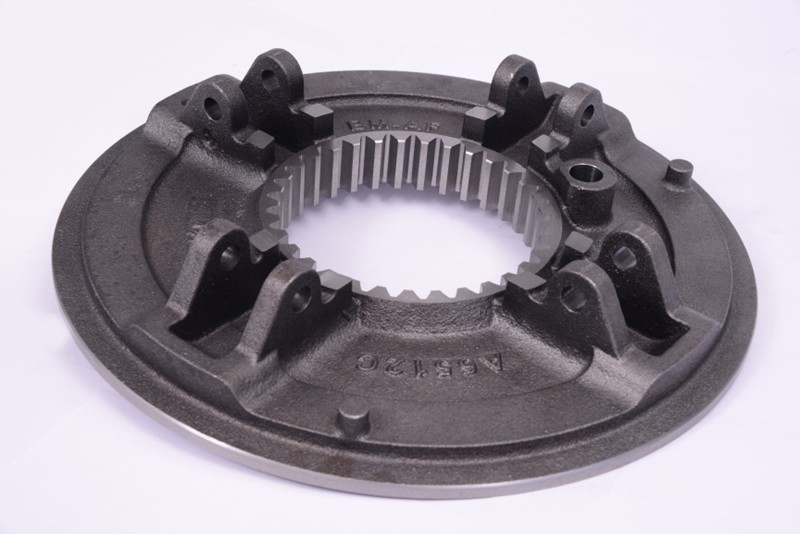

Pressure Plate

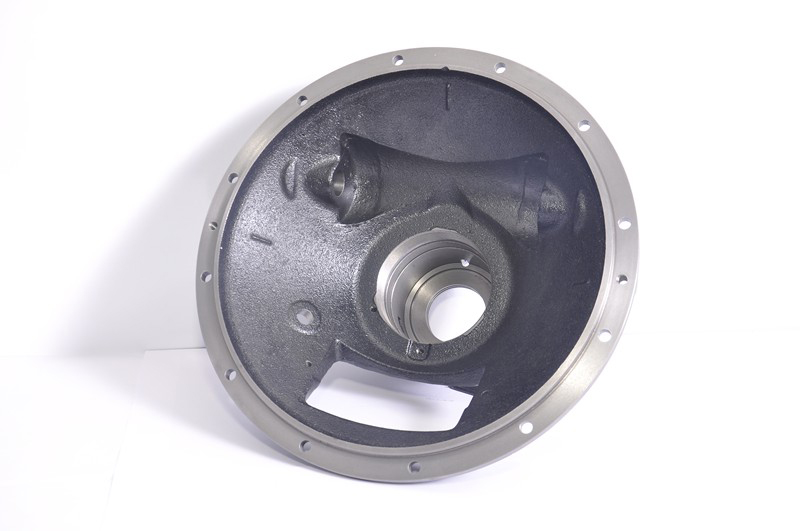

PTO Housing

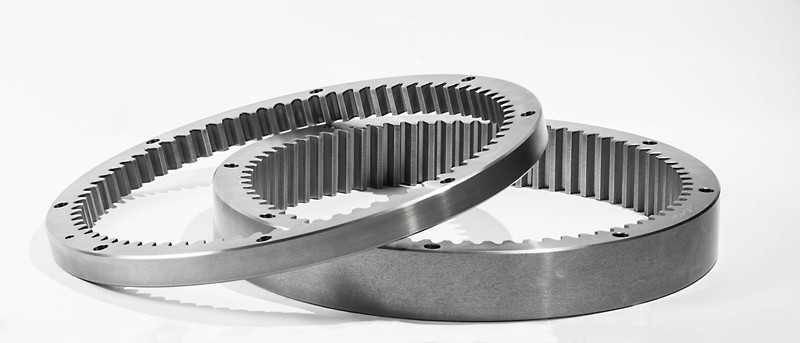

Drive Ring

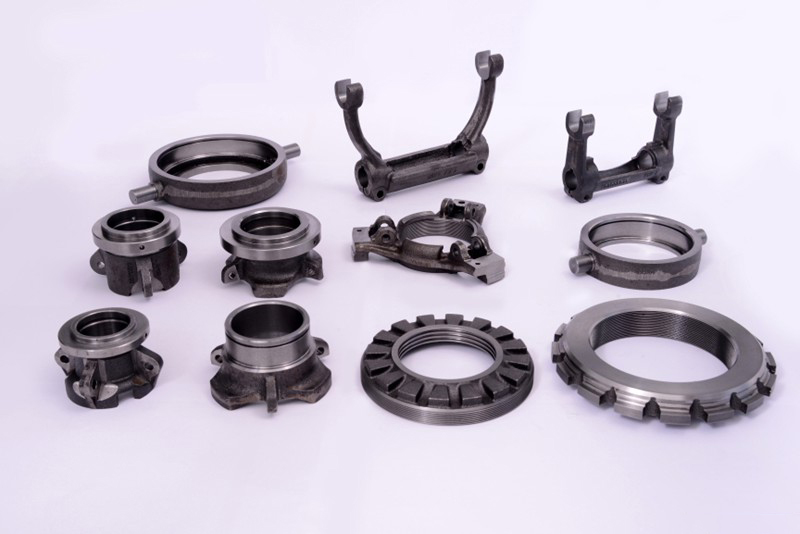

Sliding sleeves, Yoke and bearing coller

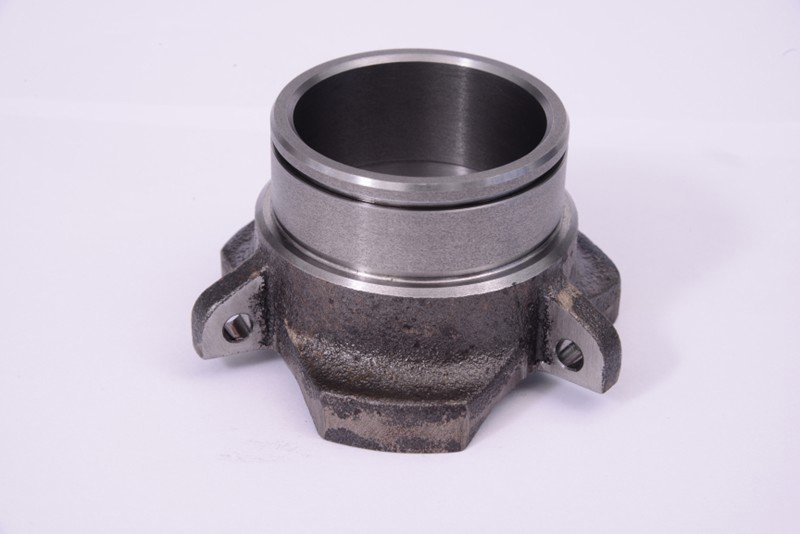

Sliding sleeve
Sliding sleeve
Drive Ring

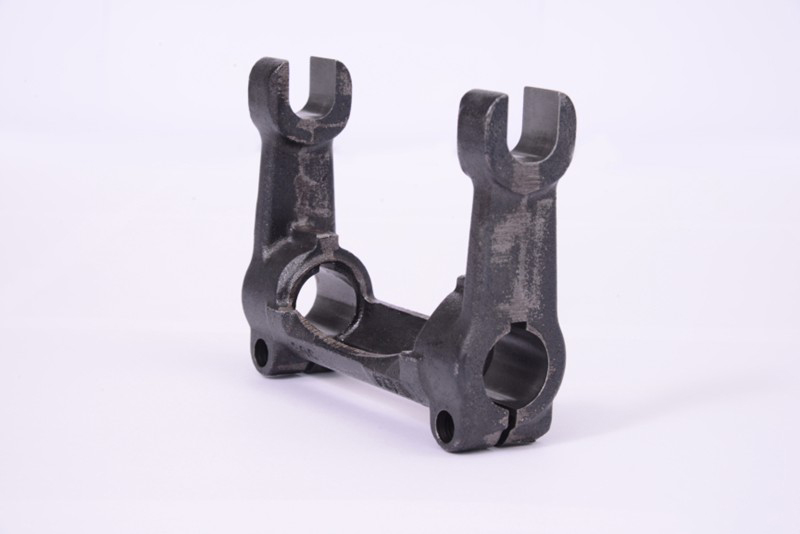

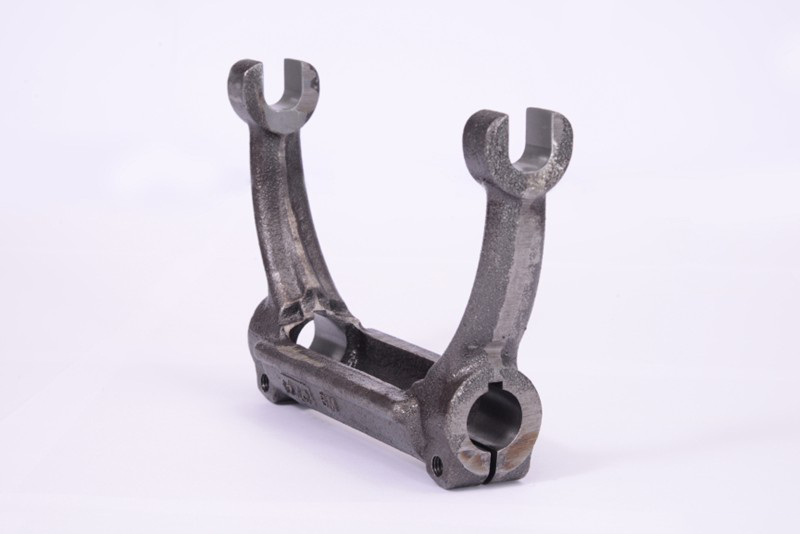

Yoke
Yoke
| Part Description | SAE Housings, Adjusting Yokes, Collars, Sliding Sleeves, Adjusting Rings, Bearing retainer, Operating Yokes, Hub and Back Plates, Drive Ring, Pressure plates, Floating plates |
| Drive Ring | Ranging from Dia. 100mm to 700mm I No. of Teeth: 19-75 Teeth upto 10 module I Accuracy: DBP+/-0.05 to 0.15mm |
| Hub and Back Plate | Ranging from Dia. 100mm to 600mm I No. of Teeth: 19-45 Teeth upto 6 module I Accuracy: DBP+/-0.04 to 0.12mm |
| Pressure Plate & Floating Plate | Ranging from Dia. 100mm to 600mm I No. of Teeth: 19-45 Teeth upto 6 module I Accuracy: DBP+/-0.04 to 0.12mm |
| Weight Range | 1 Kg to 50 Kgs |
| Material | Grey Iron: GG20, GG30, GG401 Ductile Iron: SAE 65-45-12,400-15,500-7,700-3 |
| End User | Industrial Clutches, Power Take-Off, Marine Transmissions |
