Sprockets and Coupling

sprockets are manufactured as per British and American standards

sprockets

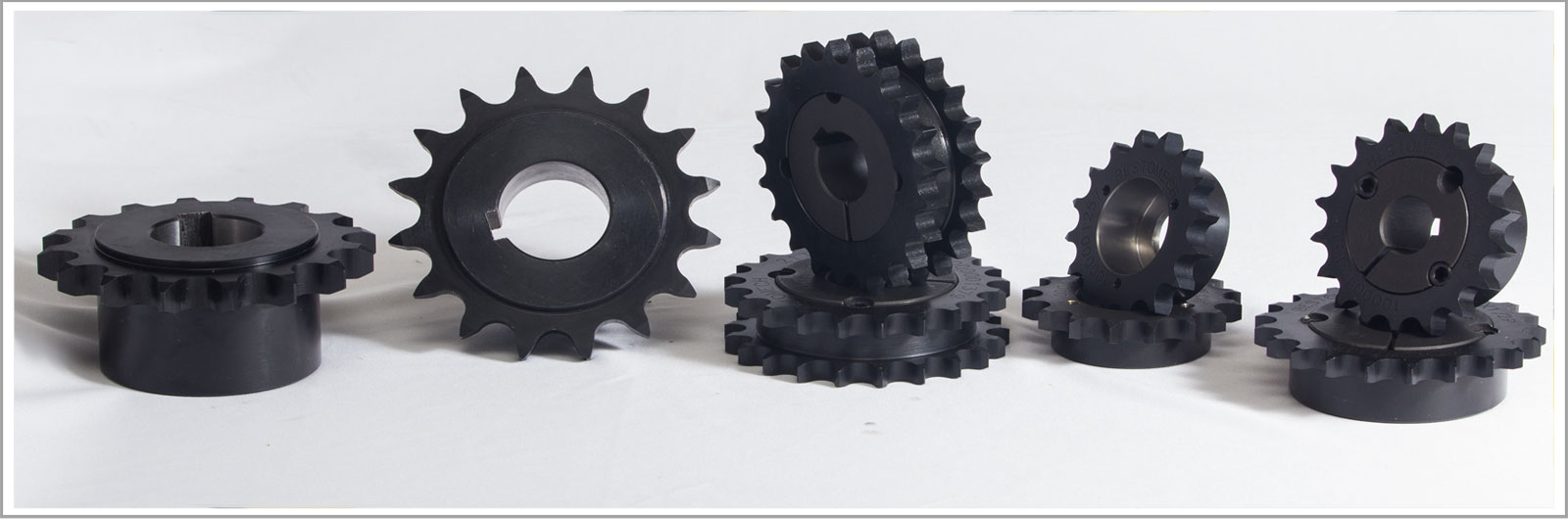

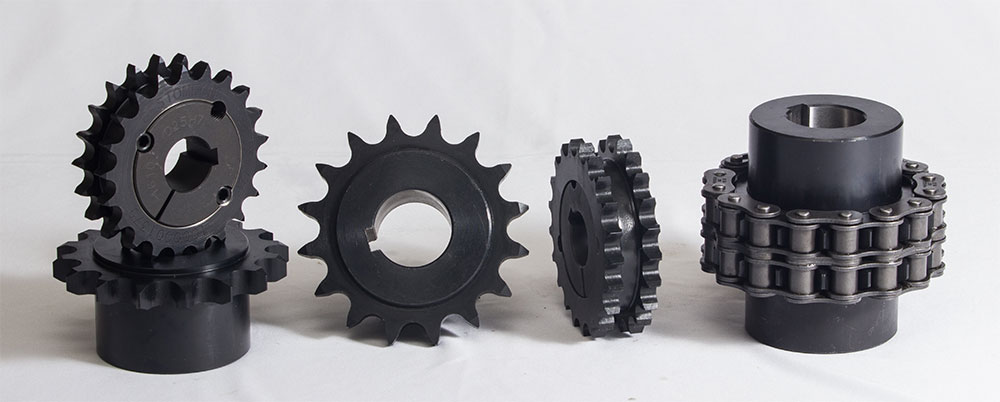

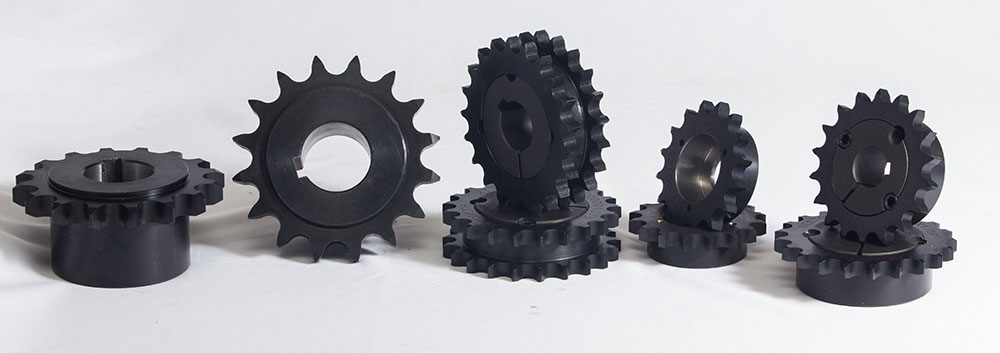

Sprockets

A sprocket is a profiled wheel with teeth that meshes with a chain, track or other perforated or indented material. It is distinguished from a gear in that sprockets are never meshed together directly, and from a pulley by not usually having a flange a each side.

A

chain sprockets

are manufactured as per British standards/American standards/Din 8187/Din 8188; ISO R 606;ANSI 29.1.Standards pitch available is inch, 3/8 inch, 1/2 inch, 5/8 inch, 3/4 inch, 1 inch Types are

plate type

,
simplex,

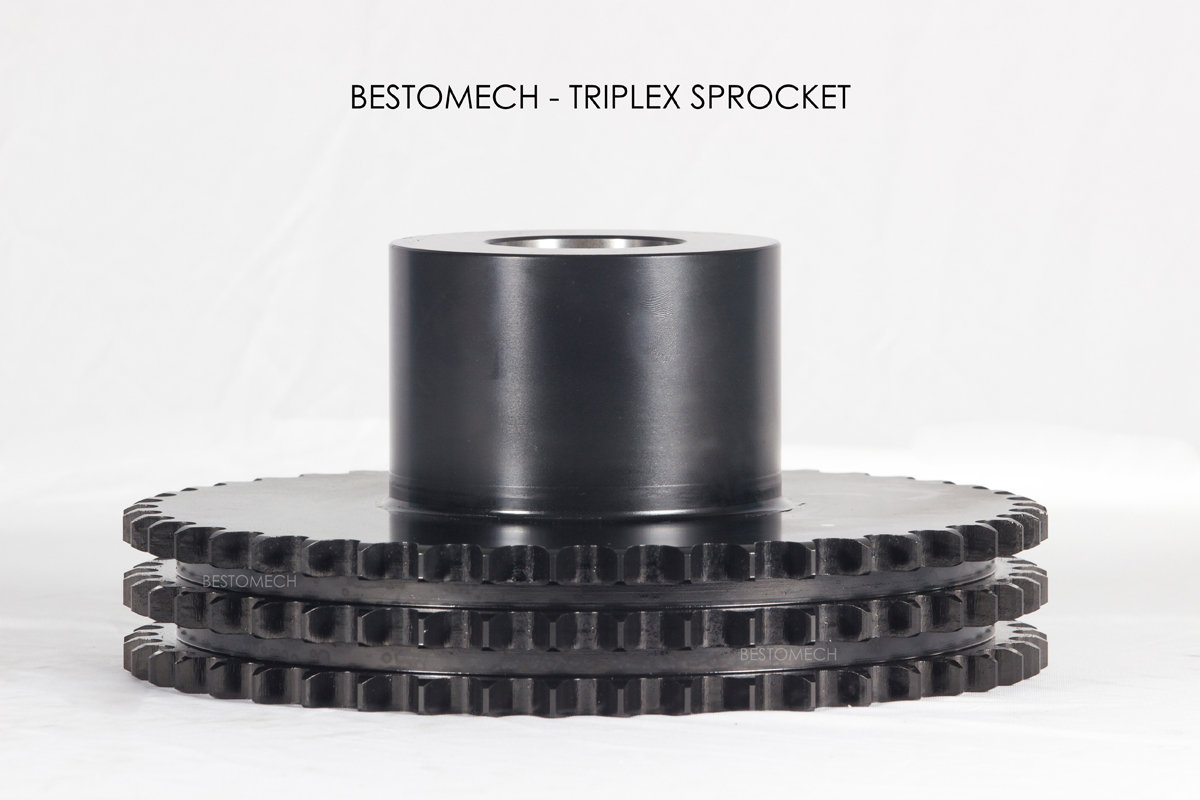

duplex & triplex body with

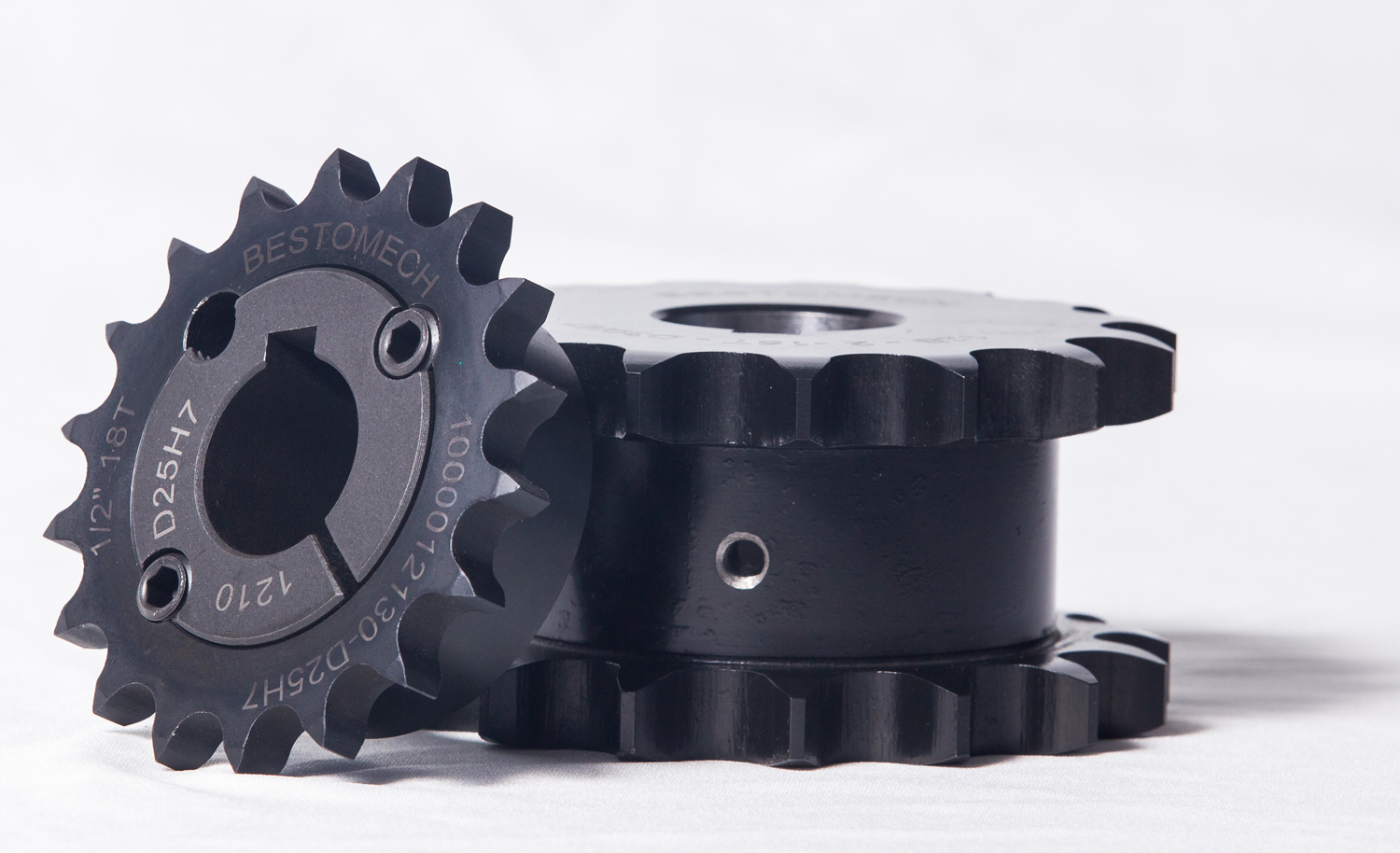

plain bore or taper lock bore

as per requirement.

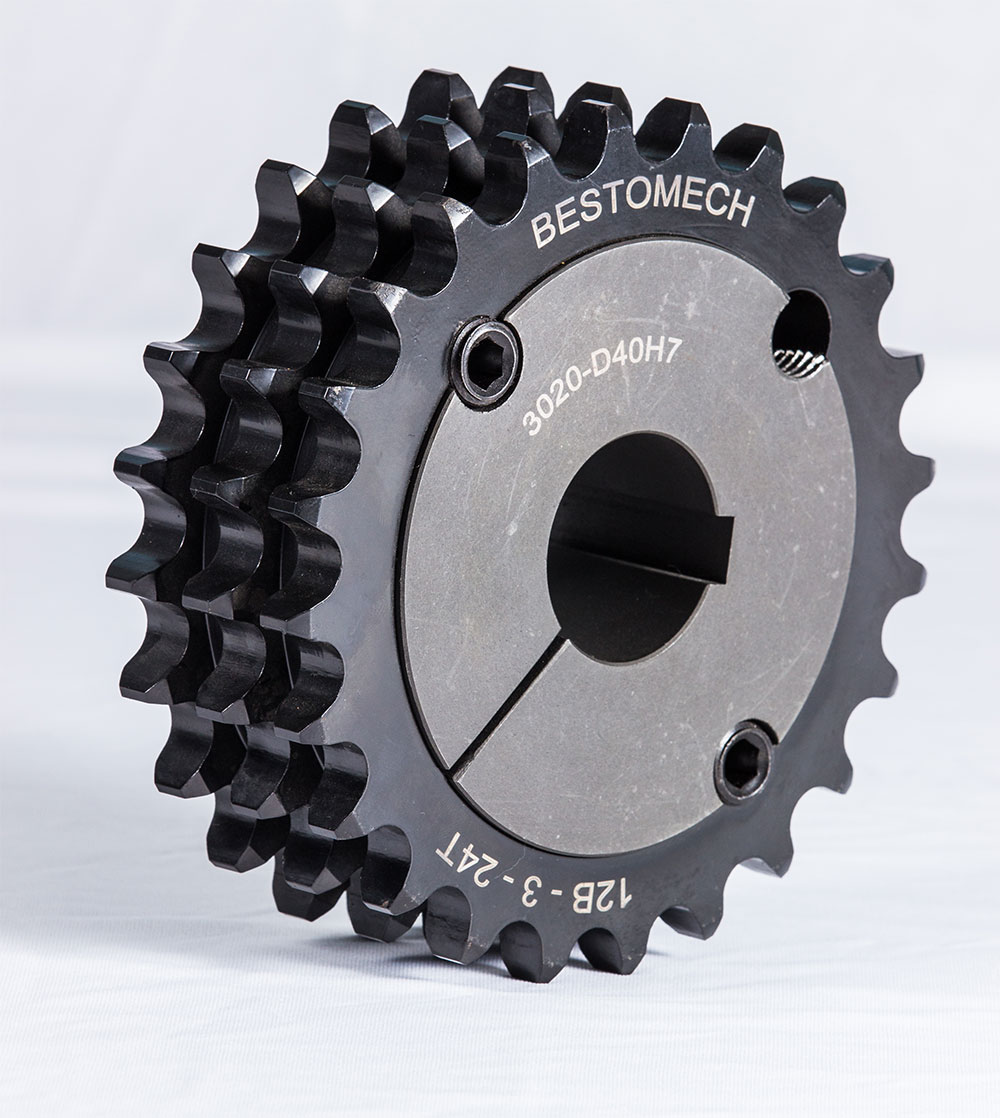

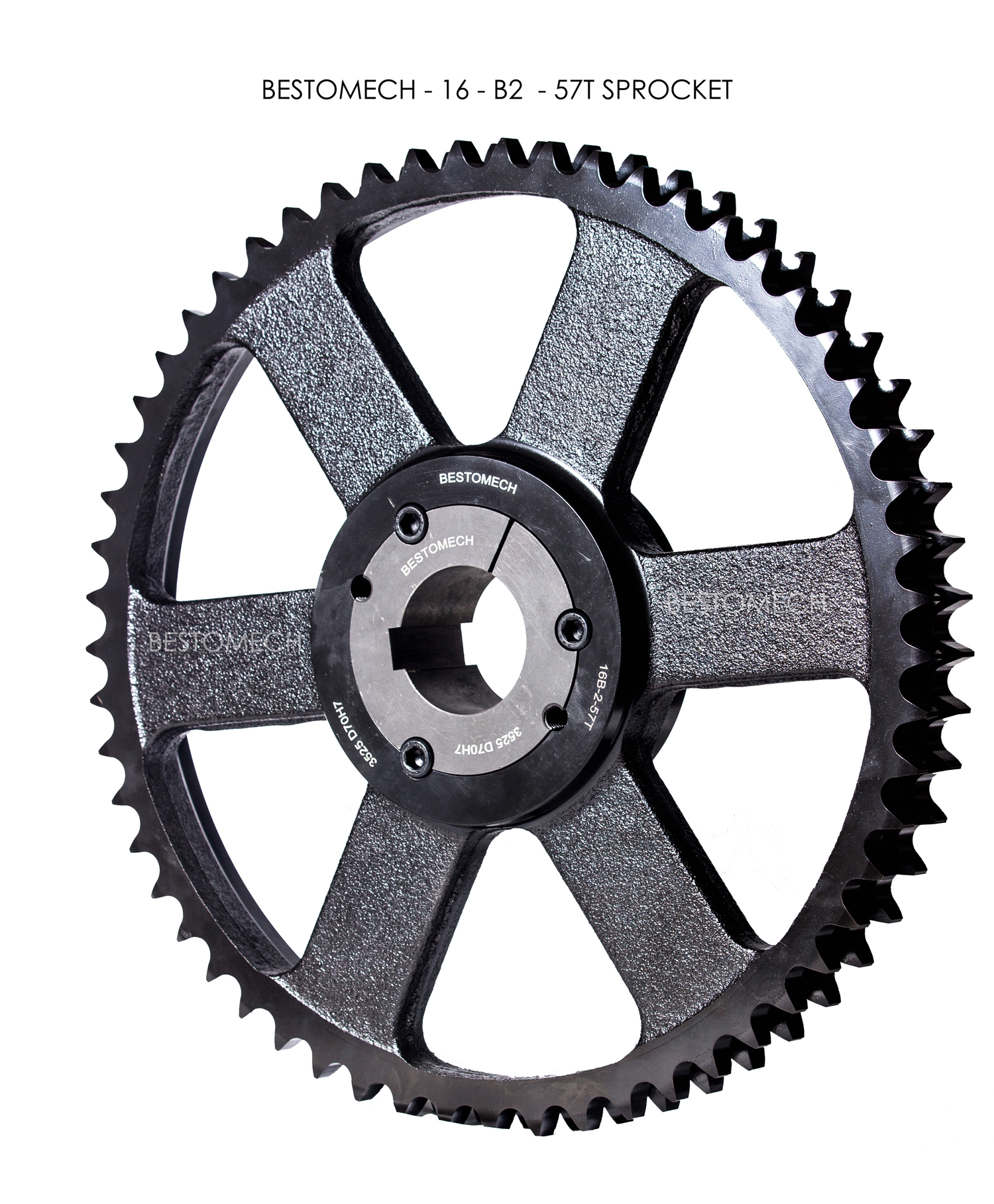

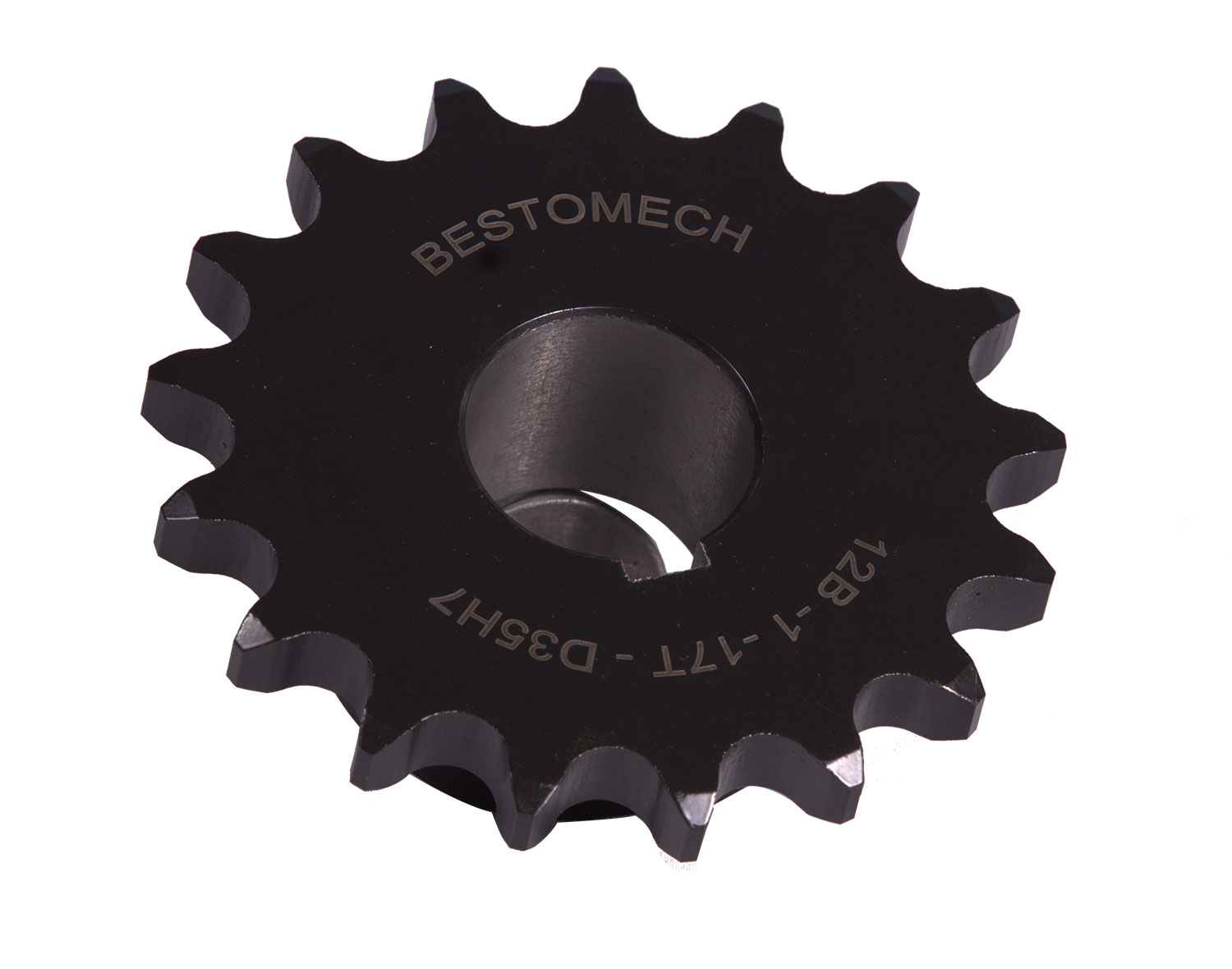

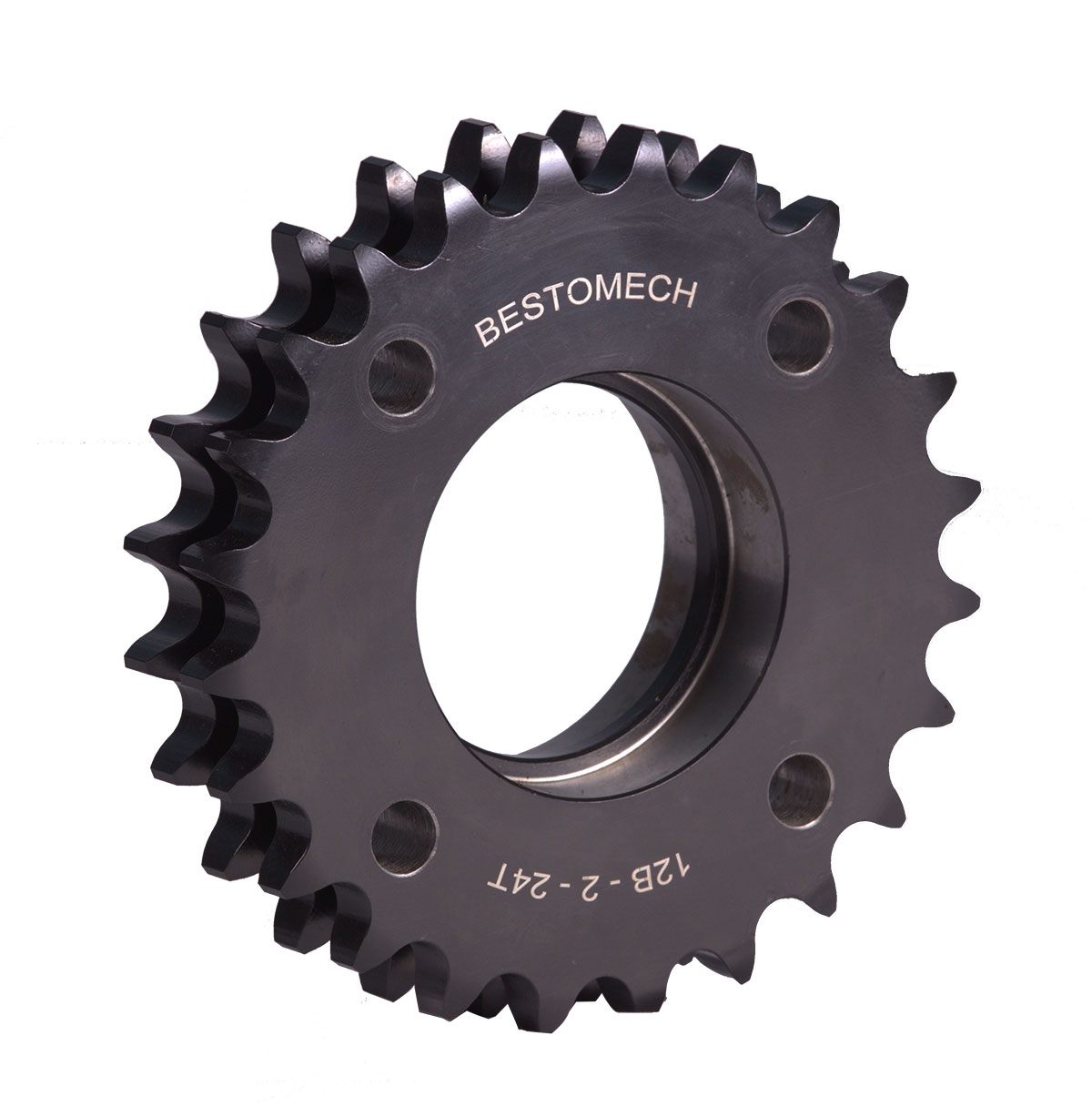

Sprockets 06B, 08B, 10B, 12B & 16B (simplex, dublex,triplex)
Weight Range 500 grams to 150 Kgs.
Size Range Dia. 40mm to 650mm with dynamic balancing.
Surface Treatment Phosphating & E-Coating,Blackening.
Material En-8/C-45, Grey Iron.
End User Industrial Gear Box, Dosing Pumps, Harvesting & Rice Mill Machineries, General Machineries.

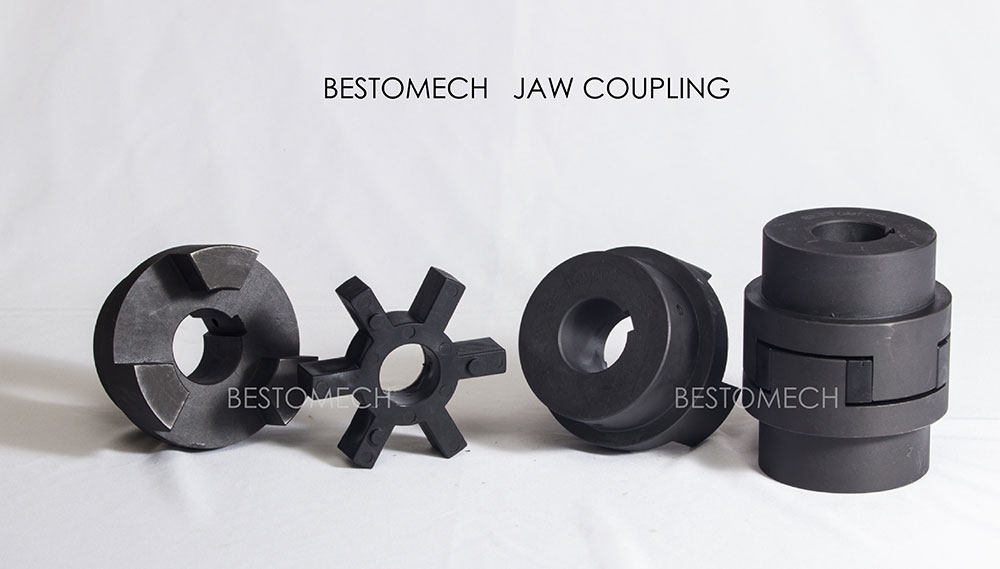

JAW Coupling



Part Description B-035 TO B-276 Hub & Elastomer
Weight Range 500 grams to 100Kgs.
Material Hub- Grey Iron : GG20, GG25, GG30, GG40 Elastomer-Polyurethane
End User Industrial Gear Box, Dosing Pumps, Harvesting & Rice Mill Machineries.
